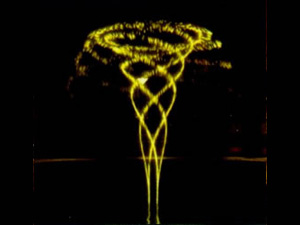

Rotary Nozzle
Location: Home » Fountain Nozzle
Description:
The nozzle is rotating the centrifugal function and reaction force of water flow. Due to different bending directions and inclination angle of nozzle tubes, this rotary nozzle can form beautiful water patterns, such as rotary nozzle and rotary basket nozzle.
| Type | Main Performance | Connecting Pipe | Installation Dimensions (mm) | Note | Instructions | |||||
| Water Pressure (kpa) | Flowing Rate (m3/h) | Spraying Height (m) | Spraying Diameter DN(mm) | Diameter DN(mm) | Connecting Mode | A | B | |||
| XZ-307 | 70 | 7.00 | 1.40 | 1.00 | 25 | Internal Thread | 140 | +80 | 5 | Rotary Basket |
| XZ-116 | 70 | 10.00 | 1.60 | 1.20 | 40 | Internal Thread | 200 | +100 | 5 | Rotary Basket |
| XZ-308 | 70 | 7.50 | 1.80 | 1.30 | 25 | Internal Thread | 170 | +100 | 8 | Rotary Basket |
| XZ-114 | 70 | 15.00 | 2.00 | 1.50 | 40 | Internal Thread | 200 | +150 | 8 | Rotary Basket |
| XZ-204 | 70 | 15.00 | 0.80 | 2.80 | 40 | Internal Thread | 230 | +150 | 12 | Rotary Basket |
