Morning Glory Nozzle
Location: Home » Fountain Nozzle

Description:

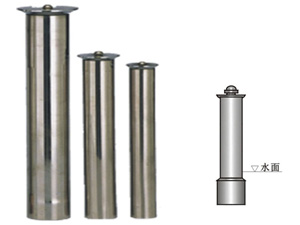

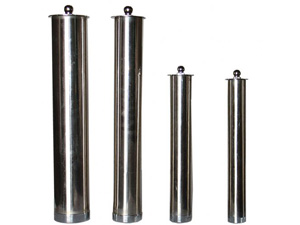

Also known as trumpet flower nozzle, it is designed according to the refraction principle. The sprayed water becomes uniform forms. On the condition that no-wind or a certain water pressure a complete trumpet flower is formed. The morning glory nozzle is suitable to indoor or country yard applications. Below the nozzle, valves can be fitted to adjust its water stream as well as the cover atop the nozzle. This makes an optimum result. The semi-circle nozzle works the same way as the morning glory nozzle.

Type Main Performance Connecting Pipe Installation Dimensions(mm)
Water Pressure (kpa) Flow Rate (m3/h) Shooting Height (m) Shooting Diameter DN(mm) Diameter DN(mm) Connecting Mode A B
QN-318 60 1.50 0.25 0.45 20 Internal Thread 160 +140
QN-102 60 2.00 0.30 0.60 25 Internal Thread 160 +145
QN-202 60 2.50 0.35 0.90 40 Internal Thread 165 +145
QN-103 60 4.00 0.40 1.20 50 Internal Thread 175 +150
