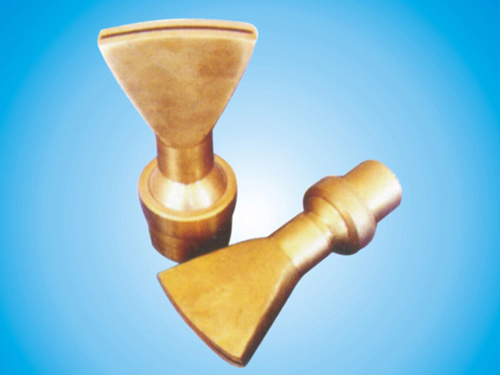

Flat Mouth Nozzle
Location: Home » Fountain Nozzle
Description:
It is suitable to various fountains with artistic water shape. The flat mouth nozzle is loaded with ball joints in which both vertical and 15-degree installation are available.
| Type | Main Performance | Connecting Pipe | Installation Dimensions(mm) | |||||
| Water Pressure (kpa) | Flow Rate (m3/h) | Spraying Height (m) | Spraying Diameter DN(mm) | Diameter DN(mm) | Connecting Mode | A | B | |
| BZ-304 | 30 40 | 2.50 3.50 | 0.5-1.0 | 0.6 1.0 | 25 | Internal Thread | 140 | +40 |
| BZ-305 | 50 68 | 4.00 5.00 | 0.8-1.5 | 1.3 1.8 | 40 | Internal Thread | 150 | +50 |
| BZ-214 | 52 68 110 | 4.00 5.00 8.00 | 0.8-1.5 | 2.0 2.3 2.8 | 40 | Internal Thread | 160 | +60 |
