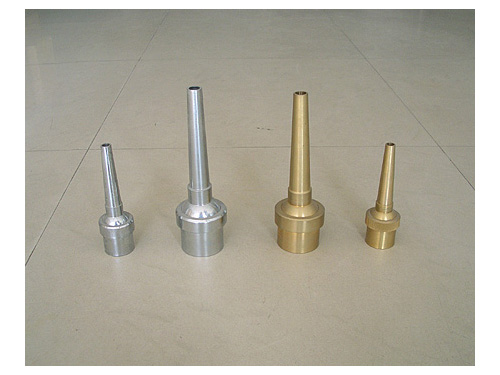

Direct Jet Nozzle
Location: Home » Fountain Nozzle
Description:
This nozzle is widely used in many fountains and essential to music fountain. It is equipped with ball spherical joint. You can adjust along vertical 15 degrees. The direct jet nozzle is presents in various types. The height and angle can be settled with the sizes and type of the fountain.
| Type | Main Performance | Connecting Pipe | Installation Dimension(mm) | ||||
| Water Pressure (kpa) | Flow Rate (m3/h) | Spouting Height (m) | Diameter DN(mm) | Connecting Mode | A | B | |
| WX-117 | 43-67 | 0.6-0.8 | 1.6-3.5 | 15 | Internal Thread | 701 | +40 |
| WX-115 | 47-77 | 1.5-2.0 | 3.4-5.0 | 20 | Internal Thread | 110 | +40 |
| WX-104 | 49-96 | 2.5-3.5 | 4.0-8.0 | 25 | Internal Thread | 130 | +40 |
| WX-216 | 48-100 | 3.5-6.5 | 4.6-9.0 | 40 | Internal Thread | 170 | 60 |
| WX-105 | 50-120 | 5-7.5 | 5.0-9.5 | 50 | Internal Thread | 250 | +60 |
| WX-118 | 90-160 | 12-15 | 7-12 | 65 | Internal Thread | 300 | +60 |
