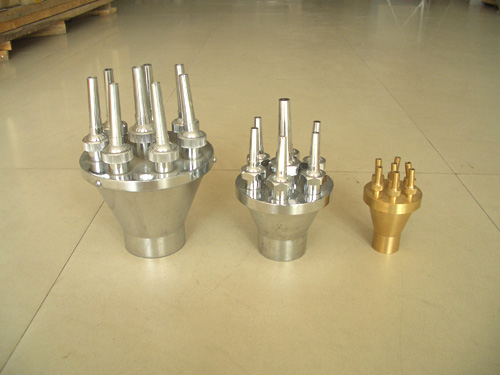

Central Upright Fountain Nozzle

Description:
The nozzle is characterized by equipping its water distributor with a number of different direction direct-jet nozzles. When the nozzle specifications are the same, the water columns sprayed will be strong and straight. When the nozzle specifications are in different types, the water streams will be in different levels. The central upright fountain is an essential part of large-scale fountain which also known as central water column nozzle.

Type Main Performance Connecting Pipe Installation Dimension(mm)
Water Preaaure (kpa) Flowing Rate (m3/h) Spouting Height (m) Spouting Diameter DN(mm) Diameter DN(mm) Connecting Mode A B
SZ-310 100-150 200-250 19-23 25-28 3-5 6-11 1.0-1.3 1.4-1.6 50 Internal Thread 220 +120
SZ-212 150-250 250-450 29-38 52-60 7-10 11-16 1.6-1.8 2.0-2.5 65 Internal Thread 280 +120
