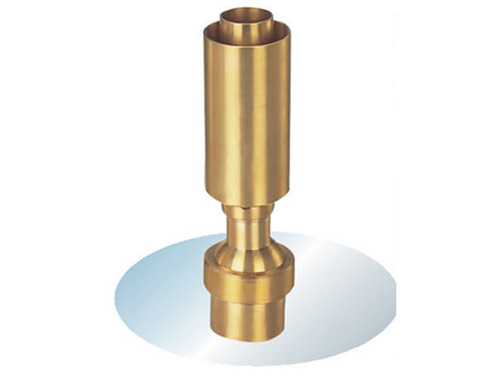

Aerated Nozzle
Location: Home » Fountain Nozzle
Description:
Also known as foam nozzle, inhalation nozzle, is based on the principal of jet pump. The aerated nozzle takes in some air in order to make hug water stream with less water when spraying. Its water column is white and opaque with rather good reflective effects. The air intake quantity varies along with the height of the aerated nozzle shell. The more air it takes, the whiter the water column and the smaller the foam will be. The ball joint of the aerated nozzle can revolve around central axis within 15 degree.
| Type | Main Performance | Connecting Pipe | Installation Dimensions(mm) | |||||
| Water Pressure (kpa) | Flowing Rate (m3/h) | Spraying Height (m) | Shooting Diameter DN(mm) | Diameter DN(mm) | Connecting Mode | A | B | |
| JQ-309 | 44-65 | 4.50-5.50 | 1.80-4.20 | 0.50 | 25 | Internal Thread | 230 | +50 |
| JQ-106 | 76-145 | 5.50-7.50 | 2.40-5.40 | 0.70-1.20 | 50 | Internal Thread | 300 | +50 |
