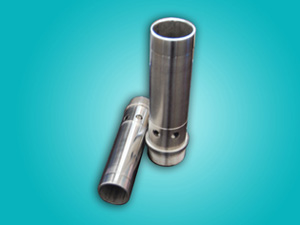

Adjustable Jade Column Nozzle
Location: Home » Fountain Nozzle
Description:
The jet water section is a gap ring. When water is sprayed, the water column is formed by cylindrical hollow water film. .The water stream of the adjustable jade column fountain nozzle is strong and magnificent with anti-wind capacity.
| Type | Main Performance | Connecting Pipe | Installation Dimensions(mm) | |||||
| Water Pressure (kpa) | Flow Rate (m3/h) | Shifting Height(m) | Shifting Diameter DN(mm) | Diameter DN(mm) | Connecting Mode | A | B | |
| YZ-302 | 90 110 180 | 8.00 9.50 13.00 | 3.50 4.60 5.50 | 0.20 0.30 0.40 | 25 | Internal Thread | 220 | 50 |
| YZ-303 | 280 350 | 25.00 40.00 | 6.00 8.00 | 0.30 0.50 | 50 | Internal Thread | 260 | 80 |
